Dome 72 Cores Fiber Optic Enclosure Outdoor 5 Round Cable Port Wall Mounting Style

Name: Dome 72 Cores Fiber Optic Enclosure Outdoor 5 Round Cable Port Wall Mounting Style
Brand: HG or OEM
Price: 1 USD

Quality Dome 72 Cores Fiber Optic Enclosure Outdoor 5 Round Cable Port Wall Mounting Style for sale

Brand Name : HG or OEM

Model Number : CV014

Certification : iso9001

Place of Origin : China

MOQ : 50pcs

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 5-7working days

Packaging Details : 1pc/box

name : fiber optic enclosure outdoor

Material : PP materials with UV

Cable port : 5 round port

Max. capacity : 72Fiber

IP : IP68

Warranty : 5 Years

Contact Now

Dome 72 Cores Fiber Optic Joint Enclosure for Outdoor Cable Joints

Description:

CV014 is widely applied to the splicing, distributing variable optical cables and splitting.

Feature:

1) Adapter: can load 36pcs SC simple adapters or 36pcs LC duplex adapters

2) Splitter: can loaded 1pc PLC splitter 1*8,1*16 or 1*32

3) Splice tray: 3pcs, each 24cores

4) Cable port: 5 cable ports: 4pcs(φ18mm), 1pcs (φ42mm, cable no cutting). All cable ports are mechanical sealing

5) With different size rubber gasket for simplex, FTTH drop cable entry/exit

6) Waterproof: IP68

7) Wall-mounting, aerial hanger and pole holding

8) Material: high impact resistance PP materials with UV

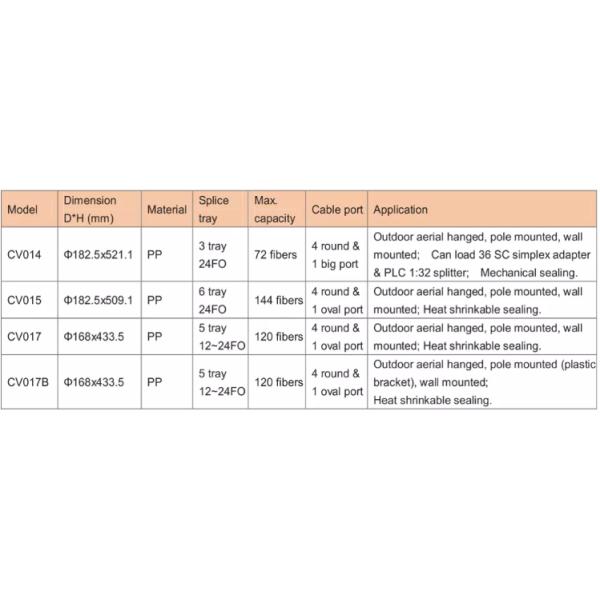

Specification:

Model

Capacity

Dimension

Splice tray

Weight

CV014

72 fibers

Max. 144 fibers

φ182.5 x 521.1 mm

3pcs, each 24 fibers

If without adapter panel, Max.6pcs

4.0 kgs
